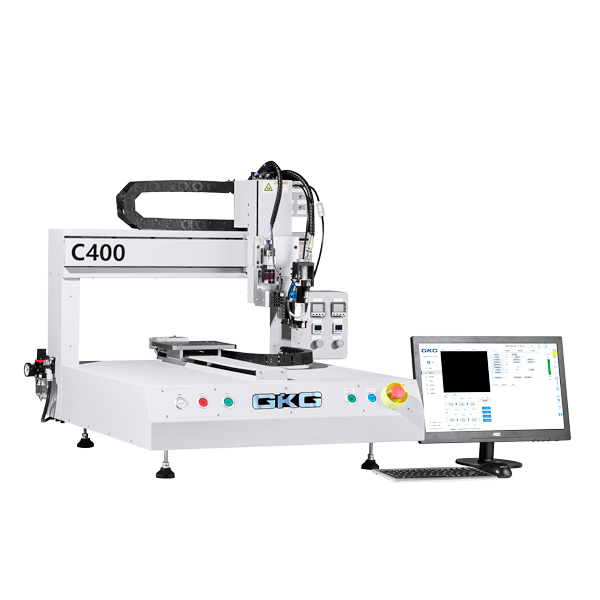

| C400/C200D desktop | |
| X/Y/Z repeated positioning accuracy X/Y/Z Repeat Position Accuracy |
Plus or minus 8 um @ 4 sigma (CPK of 1.33 or higher) |
| Motion-driven mode Motion-Driven Mode |
Ball screw conveyor Belt Transport |
| Maximum speed of XYZ axis | 600/600/100 mm/s |
| C400 dispensing range Working Range X/Y/Z |
Single platform; Single valve direct injection 400mm*400mm |
| C200D dispensing range Working Range X/Y/Z |
Dual platform; Single valve direct injection 200mm*400mm |
| Machine dimensions Machine Dimensions |
1010mm*916mm*810mm |
