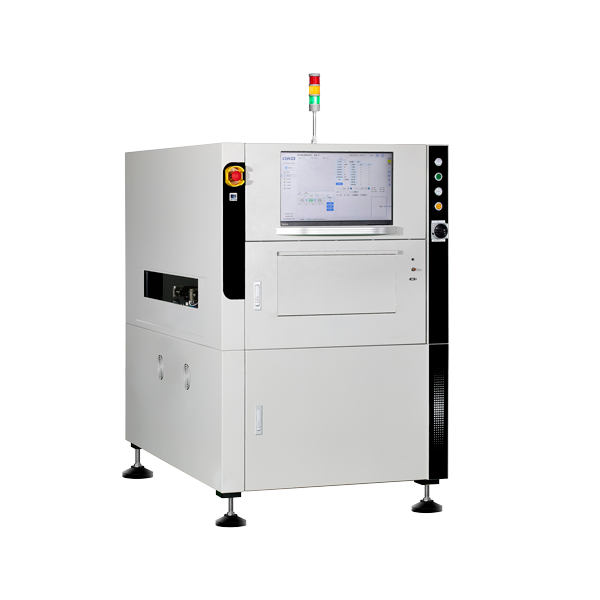

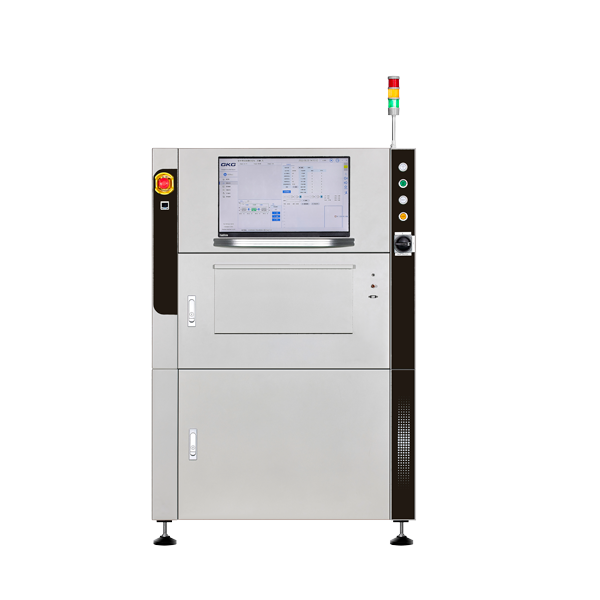

| D-Tec 3D inspection | |
| X/Y/Z repeated positioning accuracy X/Y/Z Repeat Position Accuracy |
±15um@4sigma(CPK > 1.33) |
| Motion-driven mode Motion-Driven Mode |
Servo+Motor + lead screw |
| Code scanning speed | Up to 10KHz |
| Measuring range | Z axis 25mm X axis width: near end 25mm X axis width: reference distance 27.5mm X axis width: far end 32.5mm |
| Product size | 50*50~510*686mm |
| Machine dimensions Machine Dimensions |
1020(L)*1500(W)*1500mm(H) |
