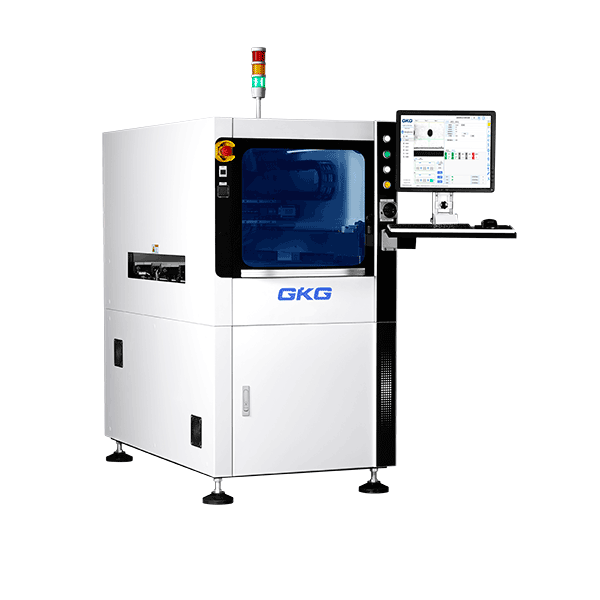

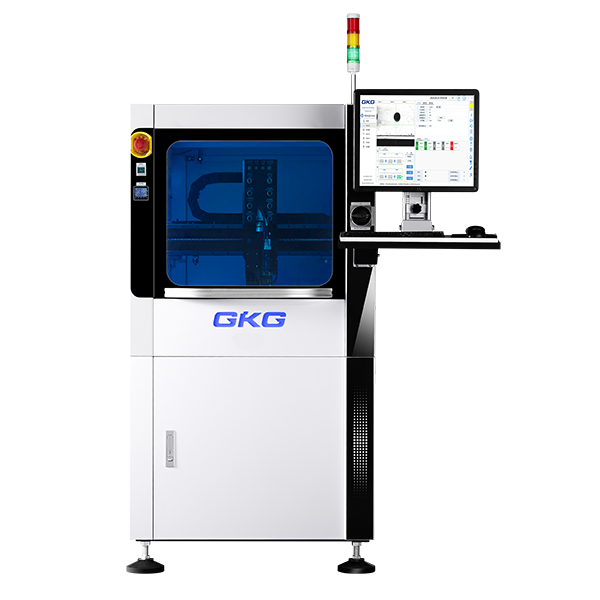

| D series | |
| X/Y/Z repeated positioning accuracy X/Y/Z Repeat Position Accuracy |
±15um@4sigma(CPK > 1.33) |
| Motion-driven mode Motion-Driven Mode |
Servo Motor + screw Servo+Motor |
| Maximum speed of XYZ axis | 800/800/400 mm/s |
| Dispensing range PCB Max/Min Size |
D series: XY50*50~350*550mm |
| Personalized track selection | Single track/Double track/Bottom heating/three-stage independent transmission |
| Dispensing head function | Synchronous double valve/asynchronous double valve/Rotary tilt |
| Precision glue control system | 0.1 mg / 0.01 mg |
| Machine dimensions Machine Dimensions |
D series: 770*1400*1480mm |
